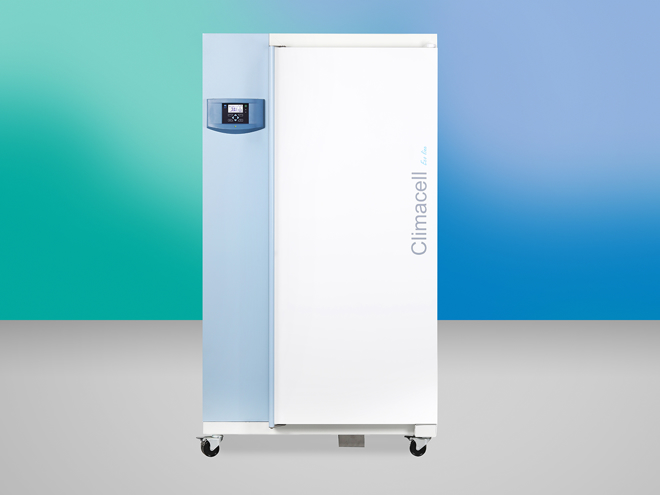

CLIMACELL

Laboratory Incubators with Forced Air Circulation with/for Heating and Cooling, and Controlled Humidity
Product images are for illustrative purposes only and may differ from the actual product.

The CLIMACELL® series was specially developed for applications, in which as far as possible exact and reproducible simulation of various environmental conditions is important, e.g. stability testing of components, packaging materials, food or chemicals, drugs, germination studies, plant cell or tissue cultures, insect cultures. This devices offers an interesting alternative to expensive testing chambers and testing rooms. Microprocessor controlled humidity assembly with powerful lighting system are warranty of the excellent homogene parameters for tests and growth conditions.

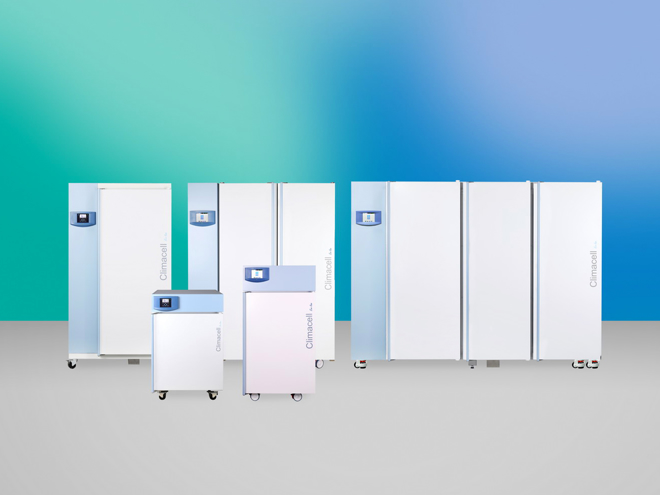

  • Volume: 111, 222, 404, 707, 1212 litres
  • Working temperature: without humidity 0°C up to 100°C, with humidity 10°C up to 90°C
  • CLIMACELL EVO as optional equipment up to -20°C
  • CLIMACELL EVO as optional equipment of chamber decontamination up to 160°C (except for the 1212 litres volume)
  • Refrigerant: R134a without CFC (for -20 °C R449a without CFC)
  • Cooling medium for generating the humidity: distilled water
  • Controlled humidity: 10% - 98% RH
  • Microprocessor controlled humidifying / dehumidifying system
  • CO2 concentration: 0,2% up to 20%

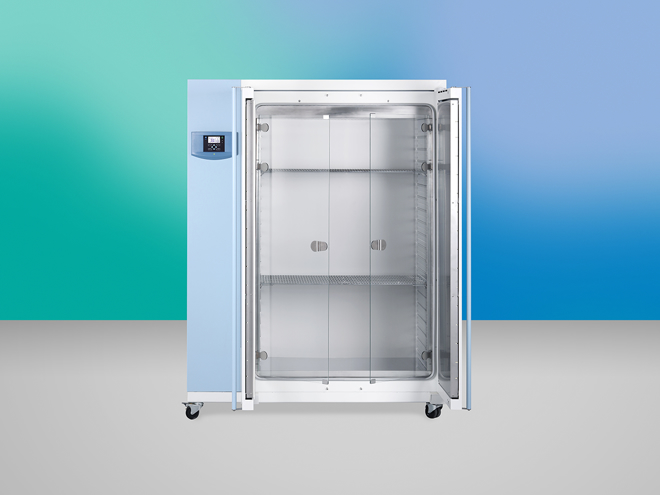

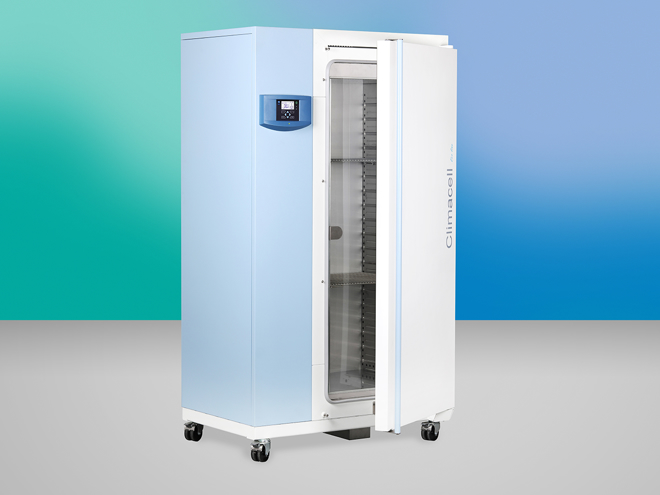

  • Inner glass door
  • Interior: stainless steel, mat. No. 1.4301 (AISI 304)
I am interested in CLIMACELL

Product series description CLIMACELL

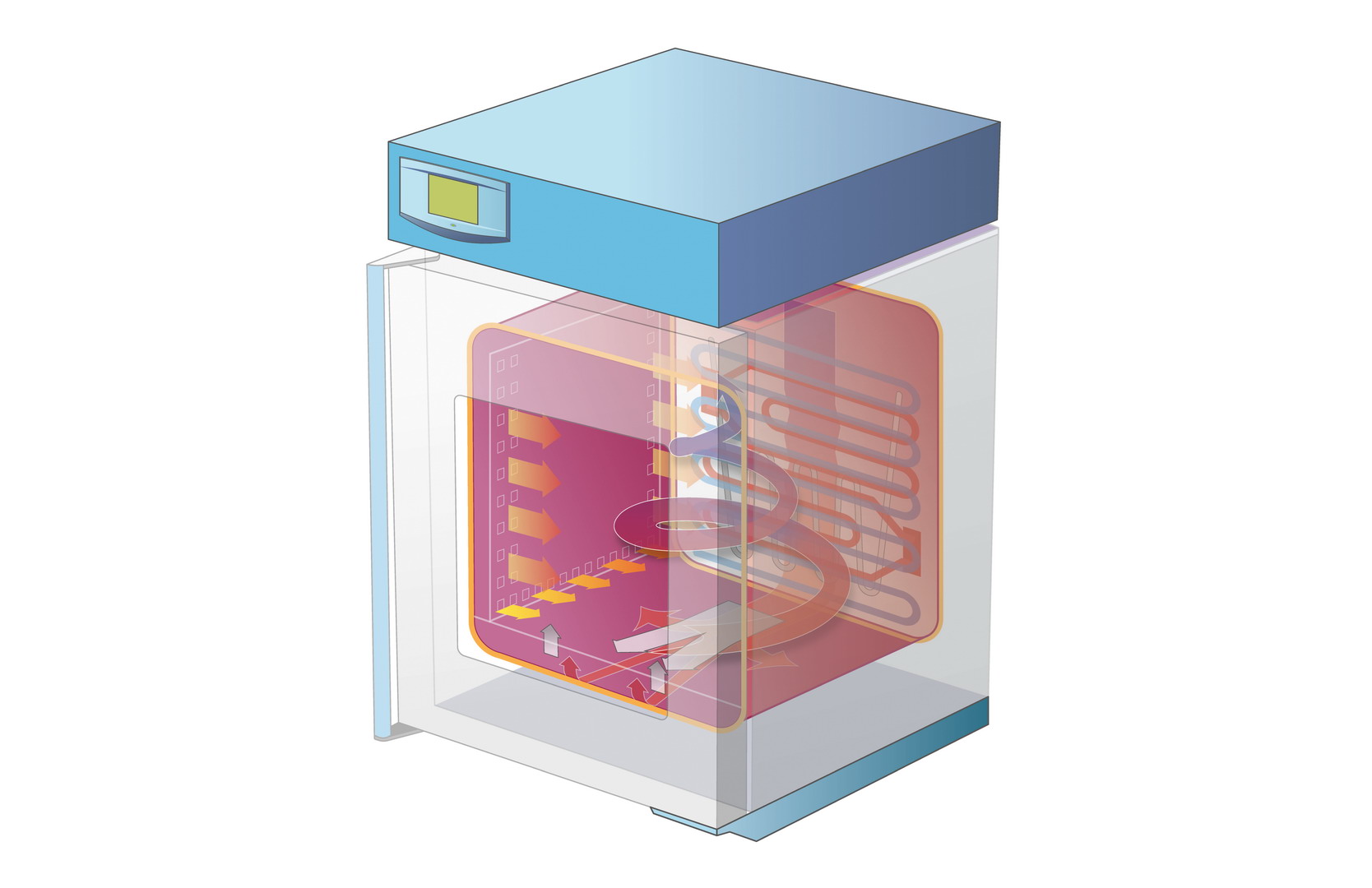

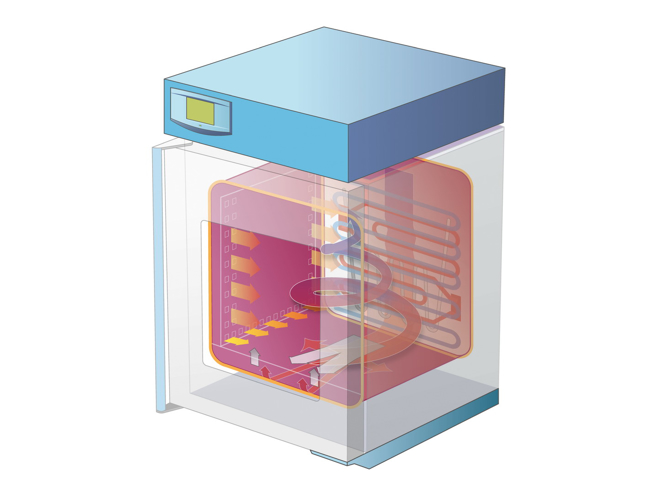

Air circulation with Cooling and Controlled Humidity

The principle of operation is based on fine forced circulation of air in connection with patent-protected powerful cooling and humidifier located in the chamber. The multi-processor control system of active humidification and dehumidification with powerful lighting system guarantees excellent homogenous conditions for exact simulation of selected climatic actions.

Programmable Exposition Lighting

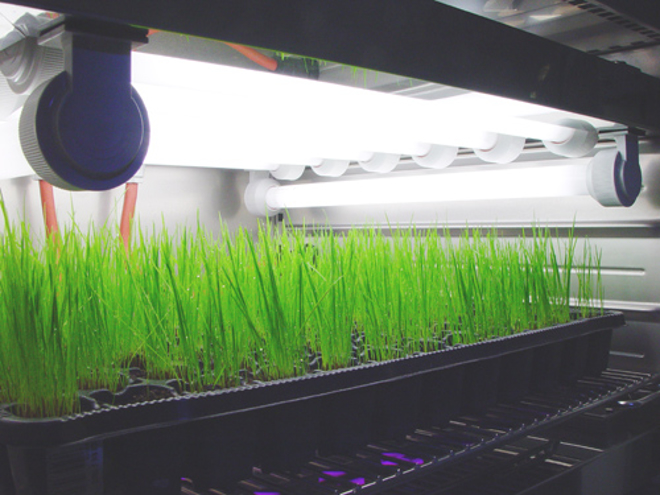

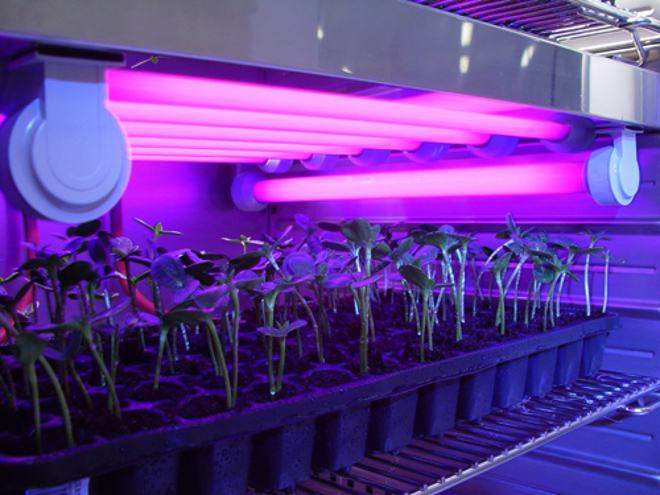

New generation of the CLIMACELL® device offers wide possibilities of selected lighting use. The variability of placement, selection of light sources, user friendliness and possibility of fluent intensity control meet even the most demanding requirements towards applications with exposure lighting.

  • Fluorescent tubes in doors
  • Fluorescent Tubes in shelves
  • LED lighting in the door
  • White LED lighting in shelves

Product Series Description

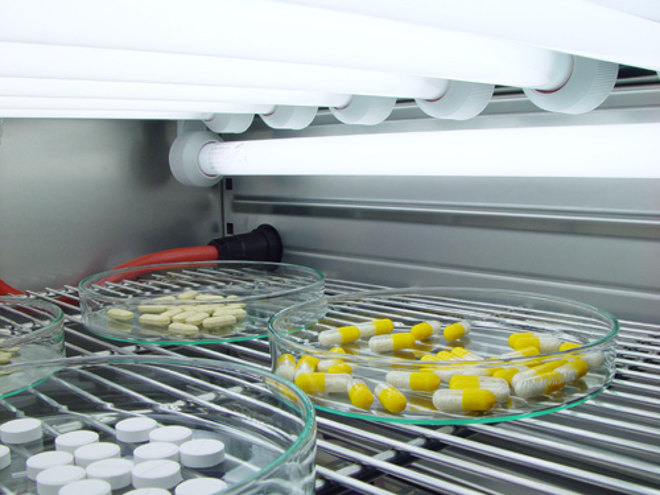

The device CLIMACELL® is designed for applications requiring exact and reproducible simulation of variable climatic conditions. The basic version of the incubator allows simultaneous regulation of temperature and humidity. In case of optional equipment buying, the device offers regulation of CO2 respectively other gases concentration or space-homogenous lighting in the field of visible or UV light with adjustable intensity and possibility of intensity measuring using special probes. Thanks to the unique combination, the device offers a wide range of possible applications to users. CLIMACELL® can be used in biology, food processing, chemical industry, electrical technology, histology, botany, pharmacy and in other branches. As a typical example it is possible to state cultivation of plant and tissue cultures or stability (photo-stability) tests of materials and medicaments. Simple control via touch screen, exact regulation and many possibilities of data outputs meet the most demanding conditions of pharmaceutical industry and they also allow user-friendly simulation of simple requirements towards plants growing. Microprocessor-controlled system of humidification and dehumidification together with high-performance programmable system of exposition lighting guarantees excellent homogenous parameters for tests and growth conditions.

Meeting the requirements of regulations 2014/35/EU, 2014/30/EU, ICH 279/95 Option 2, FDA 21 Part 11, 2011/65/EU, 517/2014/EU.

Basic Design Components

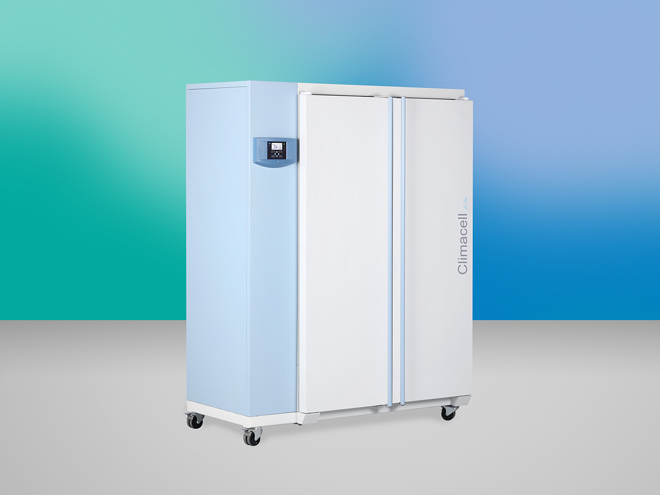

Sturdy design and perfect protection against corrosion are ensured by a self-supporting outer jacket made of galvanized steel sheet with hard and resistant baking varnish on the outer side. The inner double-jacket chamber and the door panel are made of high-quality stainless steel (DIN 1.4301, AISI 304). For the purposes of energy saving and minimizing the heat radiated to the ambient air, the chamber is perfectly insulated with an ecological insulating material. The inner walls of the chamber can be easily removed without using any tool, e.g. for the purposes of cleaning. On top of that the chamber has a fan with a speed regulation, and an inner glass door. The door is secured at four points for perfect tightening.

Changes in the design and make reserved.

« »
