VENTICELL IL EASY

Sterilization and Depyrogenation in Laboratories, Pharmacy and Industry

‹ ›

Product images are for illustrative purposes only and may differ from the actual product.

Chamber volume
- 55–707 litres
Basic features
- one-door and passthrough models
- advanced EVO automation meeting the guidelines/directives for hot air sterilization, depyrogenation
- dustproof door design
- separate control panels on both sides of the device for separate wall mounting
- input HEPA inlet filter H13, meeting the purity class ISO class 7

VENTICELL^® IL EASY is an economic modular-designed series of laboratory devices with the chamber volume of 55–707 litres. The device is used for items sterilization at the temperature of up to 180°C, or for items depyrogenation at the temperature of up to 300°C and in optional time mode. The devices can be used in laboratories, industry, pharmacy, and research. VENTICELL^® IL EASY is intended for treatment of thermally resistant, inflammable materials.

I am interested in VENTICELL IL EASY

General Information

modular system allows variable individual device variation

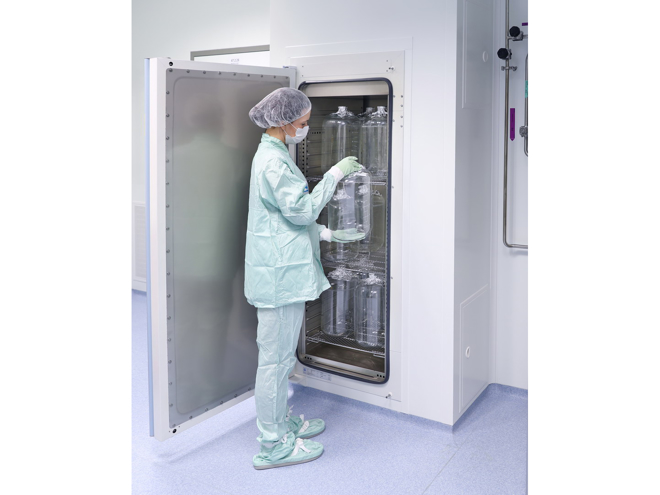

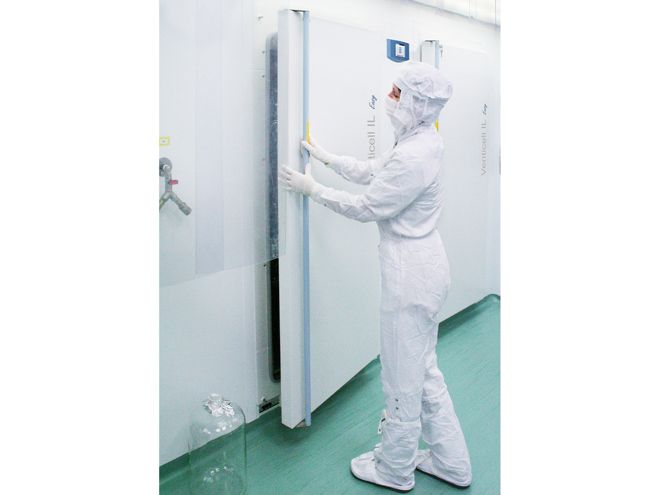

one-door and passthrough models
advanced EVO automation meeting the guidelines/directives for hot air sterilization, depyrogenation
advanced user management, including user rights definitions and multi-level account management
FDA CFR 21 Part 11 regulations for data protection in the pharmaceutical industry
dustproof door design
separate control panels on both sides of the device for separate wall mounting
separate power electronics from the basic body of the device
reinforced appliance door for less thermal expansion and better sealing at higher temperatures
adjustable fixed legs for stable installation (optional equipment)
modified control SW to minimize start-up times
sealed exhaust extension and sealed port for validation (optional equipment)
automatic door blocking, it prevents accidental or unauthorized opening of the door during the process

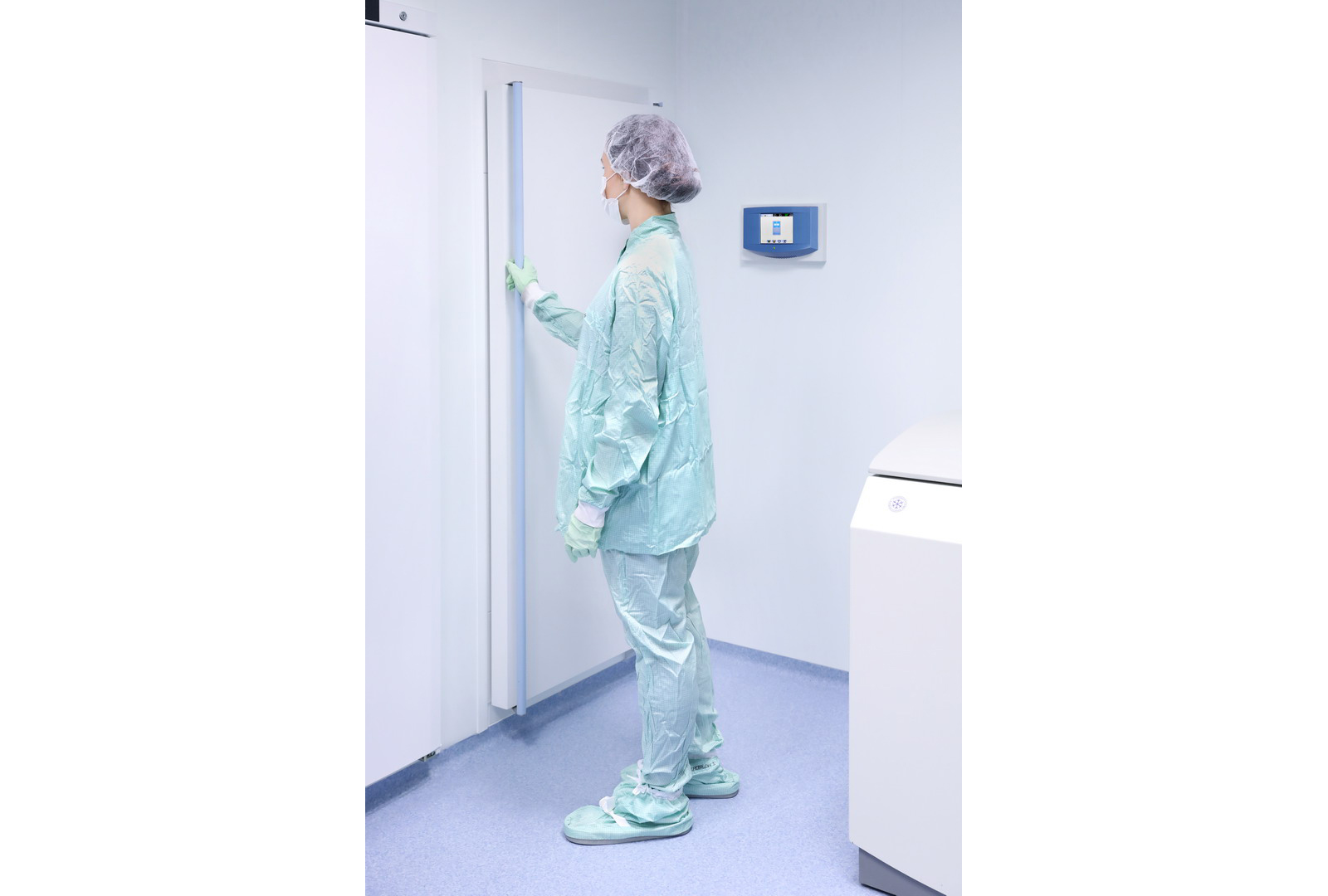

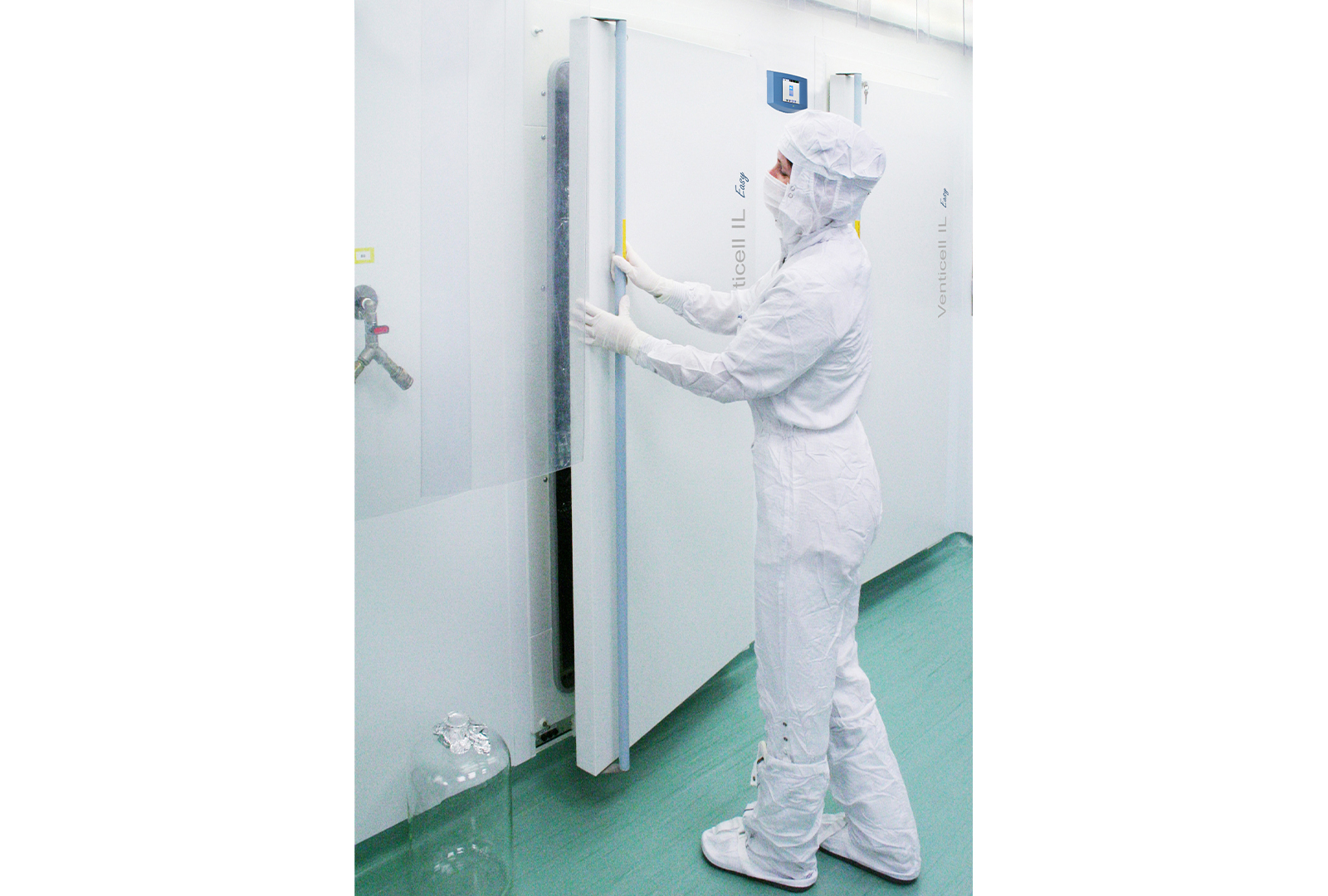

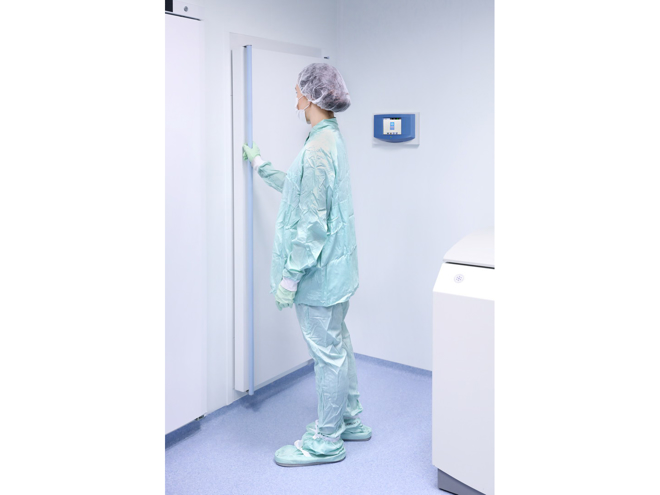

painted or stainless steel cover strips on the clean side for building the device into the wall
input HEPA inlet filter H13, meeting the purity class ISO class 7
strong thermal insulation made of chloride-free mineral wool, preventing heat loss from the device
wide offer of optional equipment and accessories according to individual needs

Use

VENTICELL^® IL is intended for thermally resistant, inflammable materials, e.g.:

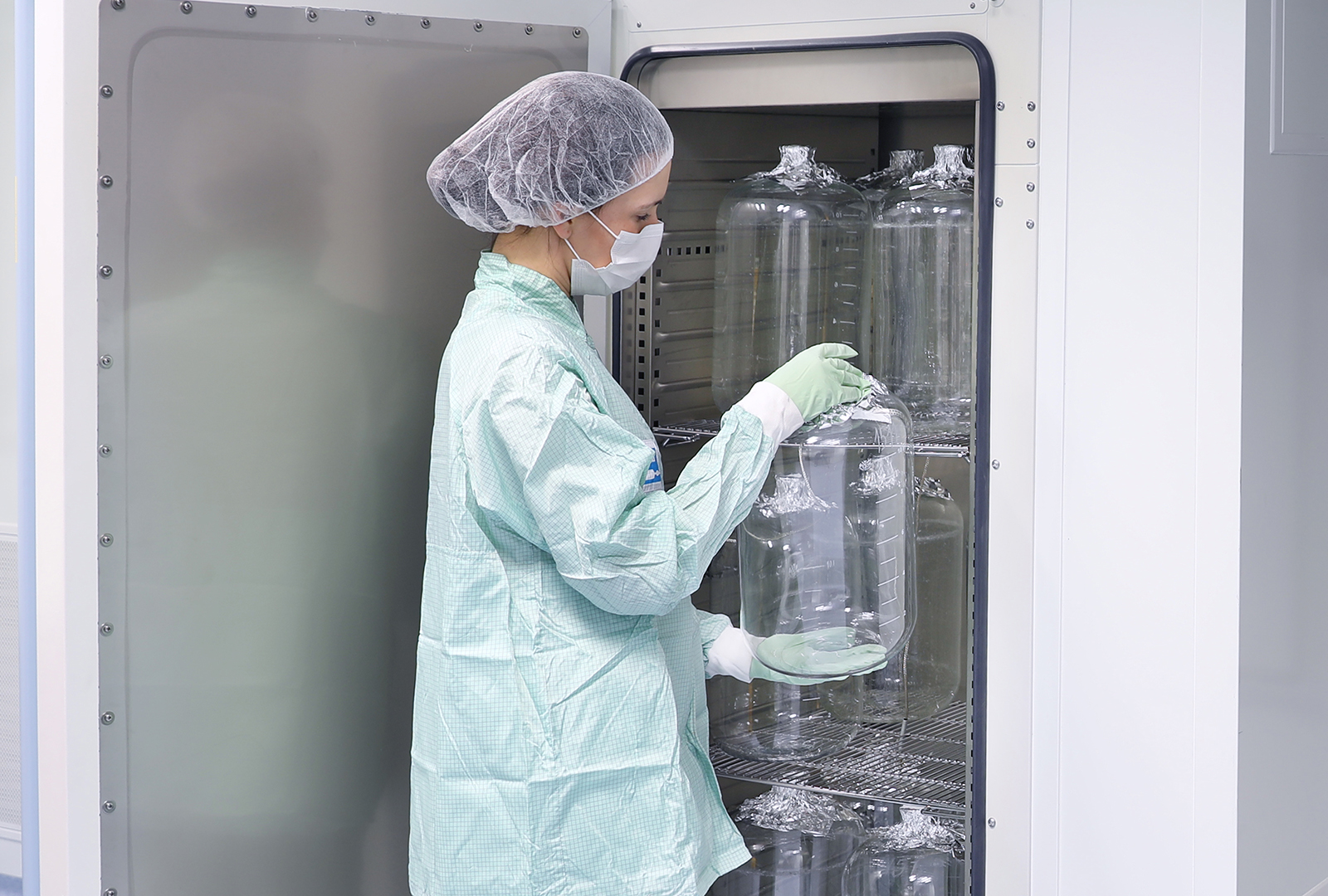

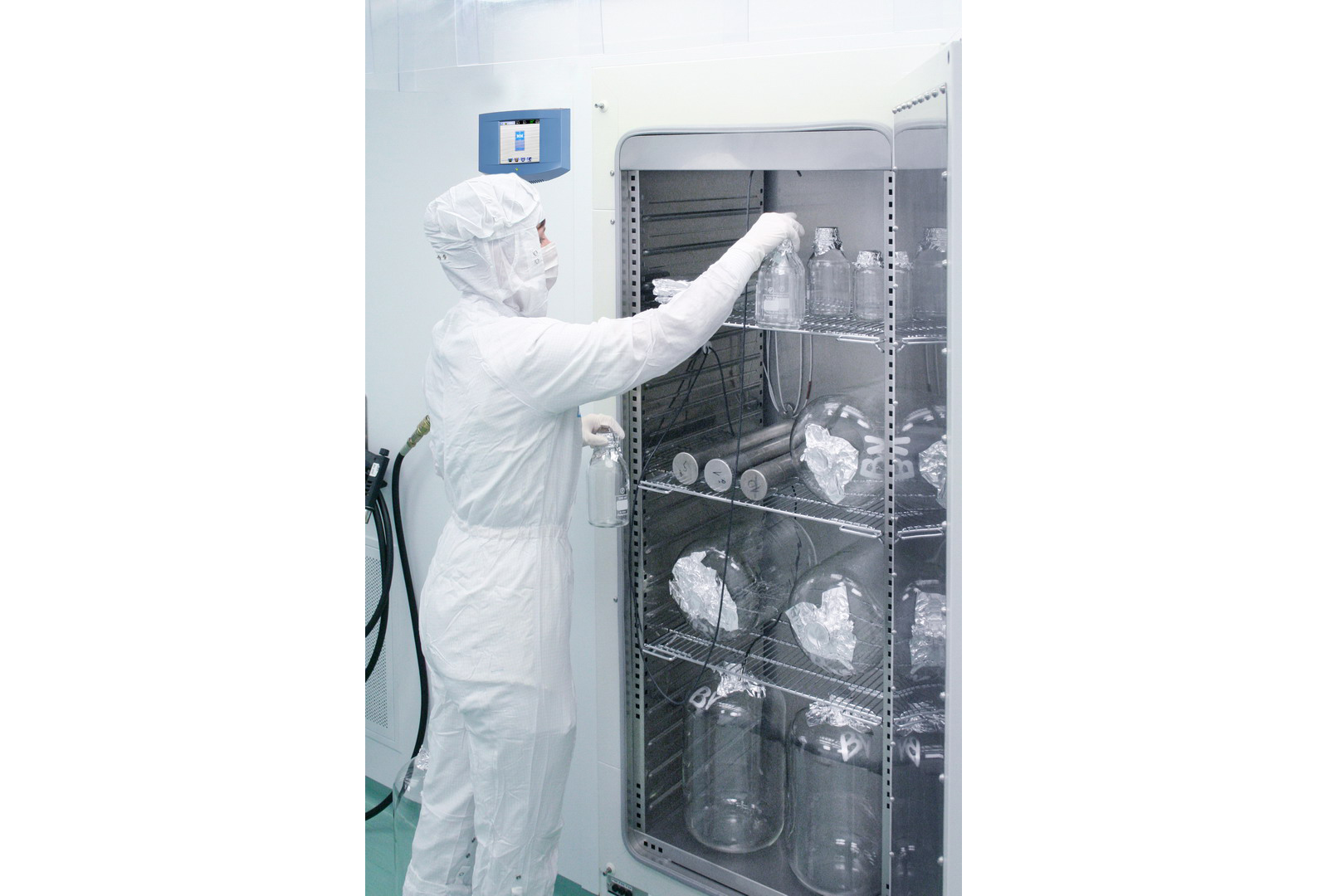

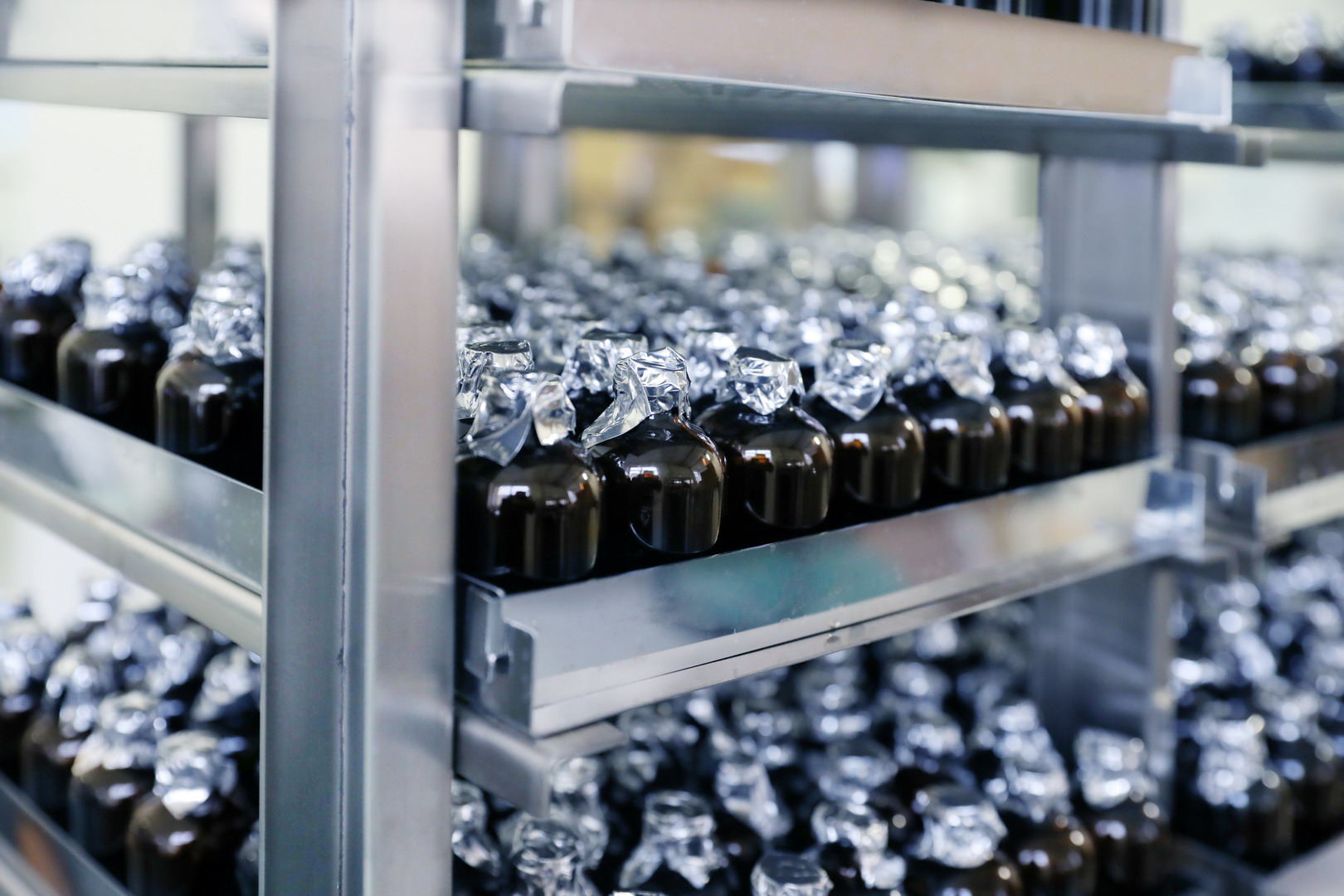

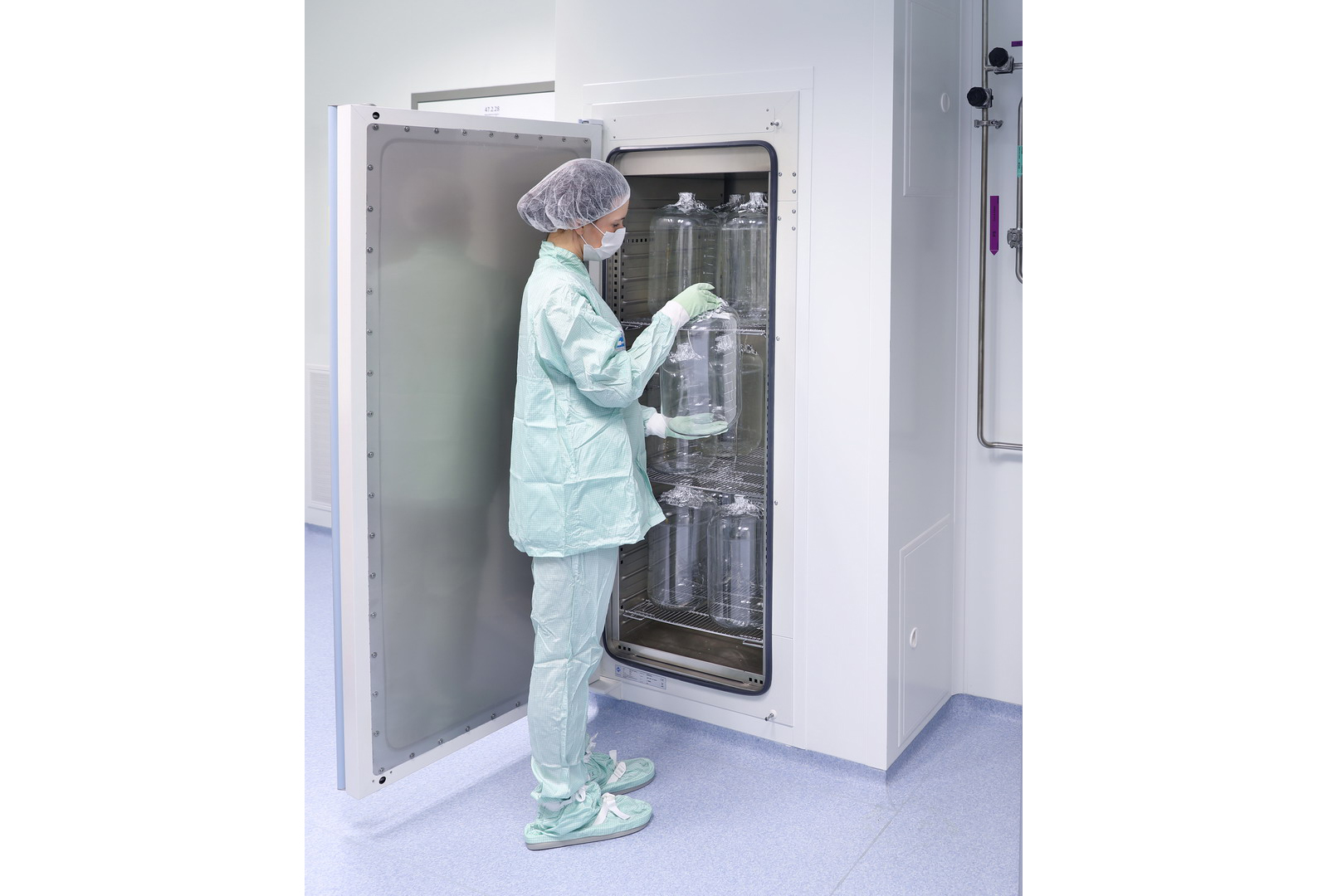

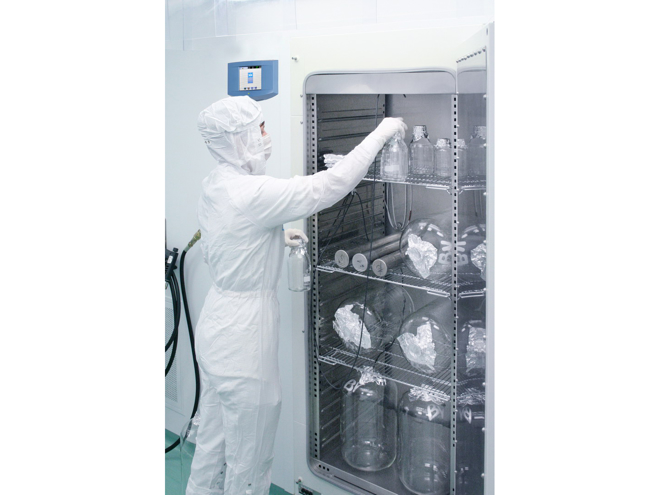

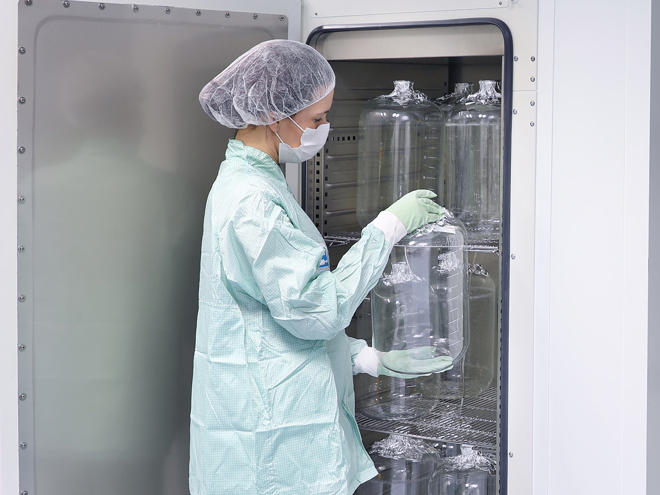

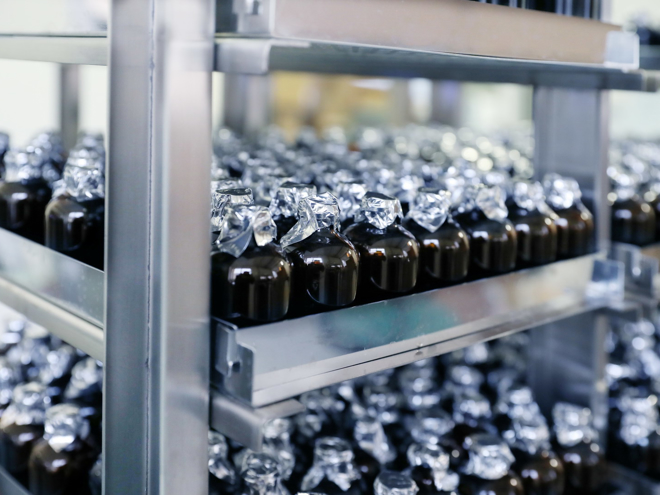

empty glass products – glasses, ampoules, vials, bottles, vessels
metal materials in pharmaceutical industry – trays, containers, accessories and device parts
thermally stable basic pharmaceutical products and chemical substances

The device concept is based on the requirements of the standard EN 61010-2-040 and can be adjusted according to the individual needs of each worksite. The device is designed and manufactured in the certified quality assurance system in accordance with EN ISO 9001.

Sterilization and Depyrogenation

Hot-air Sterilization and depyrogenation

Sterilization is a process that ensures killing of all viable microorganisms, including spores, and which leads to an irreversible inactivation and killing of health-relevant worms and their eggs.

During the sterilization cycle, the number of Bacillus subtilis microorganisms must be reduced by at least 6 orders of magnitude. The sterilizing effect in hot air sterilizers is achieved by heating the sterilized material to high temperatures (160-180 °C).

Depyrogenationis a procedure reducing the number of bacterial endotoxins (pyrogens) by at least three orders by high temperature (250—300°C) acting for a given period of time.

Important parameters of the processes are the following ones:

accurate profile reached by sophisticated heated air flow system and perfect construction design of the sterilization chamber
quick temperature rise and cooling
compliance with the regulations on clean rooms

Technical data

single-door version
- VENTICELL IL 707-1 Easy
- VENTICELL IL 404-1 Easy
- VENTICELL IL 222-1 Easy
- VENTICELL IL 111-1 Easy
- VENTICELL IL 55-1 Easy
pass-through version
- VENTICELL IL 707-2 Easy
- VENTICELL IL 404-2 Easy
- VENTICELL IL 222-2 Easy
- VENTICELL IL 111-2 Easy
- VENTICELL IL 55-2 Easy

Download

VENTICELL IL EASY - Leaflet
